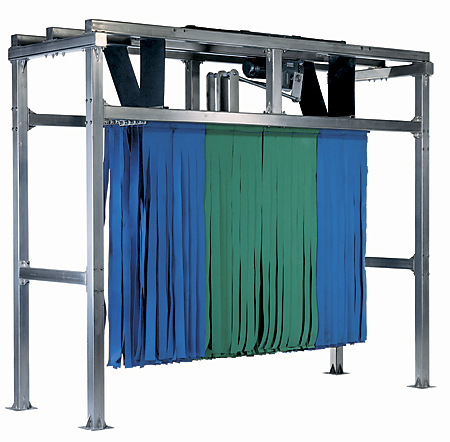

The two basket, ten row side to side mitter curtain features a heavy duty rubber connector and a faster gearbox to swing more soft-touch cloth strips than its sister side to side mitter. These gentel, soft-touch cloth scrubber curtains combine powerful cleaning action with an ultra-light touch to safely remove the most stubborn soil deposits.

Performance:

-Capable of hight RPM's for superior cleaning

-Water spray from the sides

-Utilizes fresh or reclaimed water

Structure:

-Constructed of 4" x 4" x 10 guage tubing

-Stainless steel #304

-Reinforced withh bolt sleeves

-No grease uhmw self lubricating curtain bushings

-Lifetime frame guarantee

Operation:

-TEFC electric fan cooled motor

-2 HP motor @ 1750 RPM

-Gearbox reducer @ 30:1 ratio

-Optional hydraulics available

Specifications:

-Equipment height - 10'6"

-Vehicle clearance - 92"

-Tunnel length:

- Just mitter - 4'6"

-Mitter w/ rockers - 10'

-Width - 12'

-Electric - 220/208 volt 3 phase standard

-380/440 volt 50 cycle optional

-440/575 volt 60 cycle optional

-Hydraulic power optional

-Air - none

-Water - 3/4" PVC schedule 80

-Water nozzles - 10 - 1 GPM each standard

-Shipping weight - 1200 to 1800 lbs
